Principle overview：

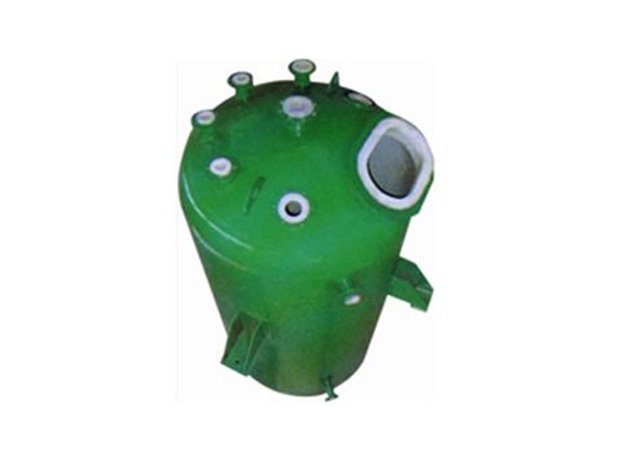

Through the impeller rotating in the tank to drive the acid circulation flow, so that the carbon in the tank is fully cleaned.
Selection instructions：
Equipment characteristics
◎ Made of stainless steel or acid resistant, abrasion resistant rubber.
Model Description：
For pickling carbon after desorption electrolysis.
Technical Parameters：
Model | Effective Volume (m 3) | Speed of impeller (r / min) | Diameter of impeller(mm) | Type of Motor（kw） | Power of motor(kw) | Weight(kg) |
| BJS-1000 x 1000 | 0.86 | 513 | 240 | Y90L-6 | 1.1 | 380 |
| BJS-1250 x 1250 | 1.3 | 492 | 310 | Y100L1-4 | 2.2 | 580 |
| BJS-1300 x 1600 | 1.8 | 320 | 400 | Y1325-6 | 3 | 750 |
| BJS-1500 x 1500 | 1.83 | 320 | 400 | Y1325-6 | 3 | 820 |
