Selection instructions：

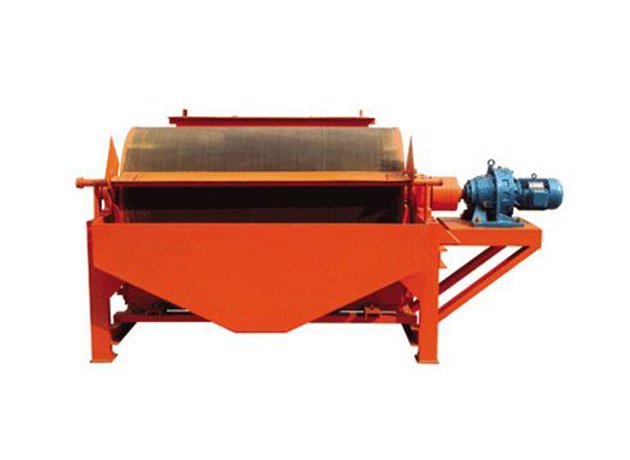

The permanent magnetic drum magnetic separator is suitable for the wet sorting magnetic separation of fine particles such as iron mine or remove the magnetic mineral from nonmagnetic minerals .
Model Description：
◆The magnetic field distribution is reasonable, long-term use without demagnetization;
◆The tank design is the computer simulation of fluid , effectively prevent the slurry precipitation blocking;
◆Magnetic adjustment is convenient and reliable, no magnetic leakage to the spindle, bearing smooth operation, long usage.
Technical Parameters：
Model | Cylinder size | Surface magnetic induction strengthMt | processing capacity | Motor power Kw | Cylinder speed r/min | Total weight of machine kg | ||
diametermm mm | Length mm | t/h | m3/h | |||||
| CTB-618 | 600 | 1800 | 根据矿石品位确定磁感应强度 | 15-30 | 40-80 | 2.2 | 40 | 1340 |
| CTB-718 | 750 | 1800 | 20-45 | 60-100 | 3 | 35 | 2100 | |
| CTB-918 | 900 | 1800 | 25-40 | 70-120 | 4 | 28 | 2900 | |
| CTB-1018 | 1050 | 1800 | 45-60 | 110-160 | 5.5 | 22 | 4000 | |
| CTB-1021 | 1050 | 2100 | 50-70 | 140-200 | 5.5 | 22 | 4500 | |
| CTB-1024 | 1050 | 2400 | 60-80 | 170-260 | 5.5 | 22 | 5000 | |
| CTB-1030 | 1050 | 3000 | 80-120 | 240-380 | 7.5 | 22 | 6300 | |
| CTB-1218 | 1200 | 1800 | 60-75 | 160-260 | 11 | 17 | 5000 | |
| CTB-1224 | 1200 | 2400 | 80-110 | 240-330 | 11 | 17 | 5900 | |
| CTB-1230 | 1200 | 3000 | 100-140 | 260-460 | 11 | 17 | 7200 | |
| CTB-1236 | 1200 | 3600 | 120-160 | 300-550 | 15 | 17 | 8200 | |
| CTB-1240 | 1200 | 4000 | 130-170 | 330-600 | 15 | 17 | 9200 | |
| CTB-1245 | 1200 | 4500 | 150-200 | 380-660 | 15 | 17 | 11000 | |
| CTB-1530 | 1500 | 3000 | 100-180 | 290-480 | 11 | 14 | 9900 | |
| CTB-1540 | 1500 | 4000 | 150-200 | 300-540 | 15 | 14 | 12000 | |
| CTB-1545 | 1500 | 4500 | 180-240 | 400-650 | 18.5 | 14 | 15000 | |
| CTB-1550 | 1500 | 5000 | 210-280 | 500-750 | 18.5 | 14 | 18000 | |
| CTB-1824 | 1800 | 2400 | 100-140 | 260-460 | 15 | 14 | 9100 | |
| CTB-1830 | 1800 | 3000 | 140-190 | 350-560 | 18.5 | 14 | 12300 | |
| CTB-1840 | 1800 | 4000 | 200-260 | 400-650 | 30 | 14 | 18500 | |
| CTB-1850 | 1800 | 5000 | 280-320 | 550-800 | 37 | 14 | 25000 | |
