Principle overview:

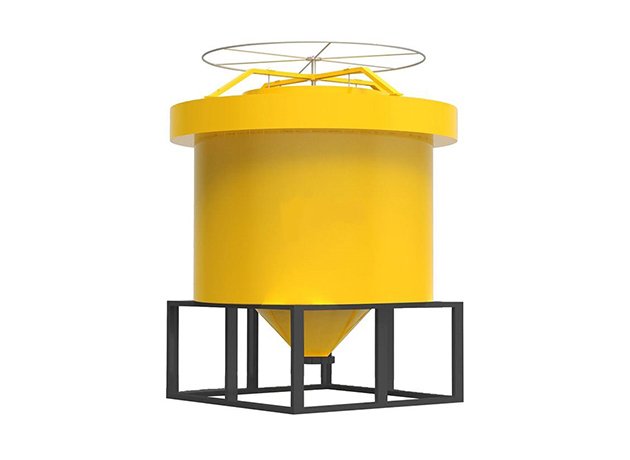

Cs series magnetic mud removal tank is the one under the action of gravity, magnetism and up-welling to separate the magnetic particles and non magnetic particle (mud).mainly used in beneficiation industries' ore concentrate.
This product uses the computer optimization design, the work efficiency is high, the reliability is good, reasonable structure and simple operation, it is ideal equipment for slime separation.
Technical Parameters:
Model | The diameter of the cylindermm | Outlet diameter mm | Pulp processing ability t/h | Weight kg |
CS-10 | 1000 | 300 | 15-30 | 1050 |
CS-15 | 1500 | 350 | 20-45 | 1400 |
CS-20 | 2000 | 370 | 25-55 | 1850 |
CS-25 | 2500 | 400 | 30-65 | 230 |
CS-30 | 3000 | 450 | 35-75 | 2860 |
CS-35 | 3500 | 500 | 40-85 | 3470 |
