Principle overview：

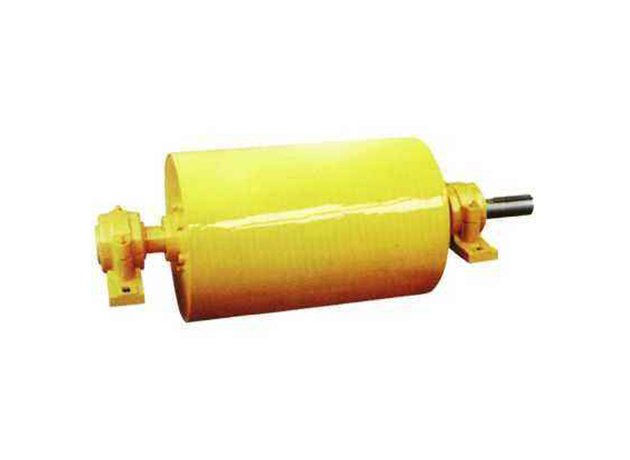

CTZ series semi strong permanent magnetic cylinder (semi magnetic and full magnetic) is mainly used for purifying the powdery, granular and small material or recycling the iron .This model has the advantages of convenient installation, strong suction force, no energy consumption, continuous operation and simple operation.Widely used in metallurgy, ceramics, abrasives, emery, non-metallic minerals, refractories, mines, food, chemicals, glass, building materials and other industries
Technical Parameters：
Parameter/ Project/ Model | Mm The diameter of the cylinder mm | Bmm Adaptive bandwidth mm | The length of the cylinder mm | Surface magnetic induction strength ≈gs | Cylinder speed r/min | Overall dimension (mm) | |||||
| A | L1 | K | dΦ | h | b | ||||||
| CTZ-32/40 | 320 | 400 | 500 | 3000 | 20-30 | 728 | 1000 | 100 | 50 | 53.5 | 14 |
| CTZ-32/50 | 320 | 500 | 600 | 3000 | 850 | 1100 | 100 | 50 | 53.5 | 14 | |
| CTZ-40/50 | 400 | 500 | 600 | 3000 | 850 | 1115 | 115 | 55 | 60 | 14 | |
| CTZ-50/50 | 500 | 500 | 600 | 3500 | |||||||
| CTZ-32/65 | 320 | 650 | 750 | 3500 | 1000 | 1300 | 115 | ||||
| CTZ-40/65 | 400 | 650 | 750 | 3500 | 1000 | 1350 | 135 | ||||
| CTZ-50/65 | 500 | 650 | 3500 | 55 | 64 | 16 | |||||
| CTZ-63/65 | 630 | 650 | 3500 | 70 | 97 | 18 | |||||
| CTZ-40/80 | 400 | 800 | 950 | 4000 | 1300 | 1630 | 175 | 70 | 76 | 18 | |
| CTZ-50/80 | 500 | 800 | 4000 | ||||||||
| CTZ-63/80 | 630 | 800 | 3500 | 1730 | |||||||
| CTZ-80/80 | 800 | 800 | 4000 | 90 | 97 | 20 | |||||
| CTZ-63/100 | 630 | 1000 | 1150 | 4000 | |||||||
| CTZ-80/100 | 800 | 1000 | 1150 | 4000 | 1500 | 2000 | 215 | 110 | 119 | 24 | |
