GYW series permanent magnetic vacuum filter

Time:2021-04-27 09:49 Reading volume:10



  Principle overview:

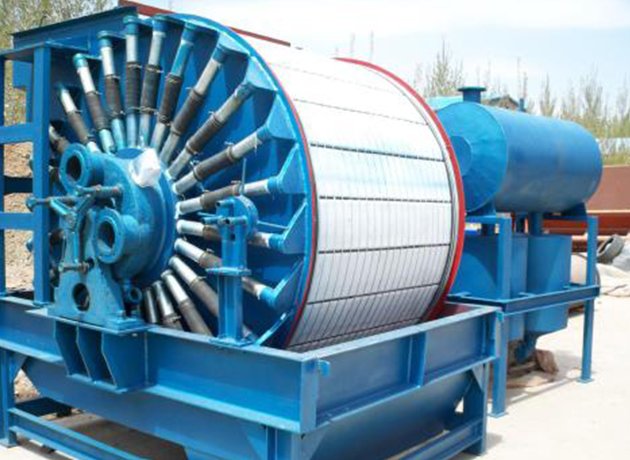

GYW series permanent magnetic vacuum filter is the type of cartridge filter by upper feeding which is mainly suitable for the dehydration of coarse magnetic material.

The optimum working conditions for the filter:

The specific magnetization coefficient of solid particles in the pulp more than 3000000001 cm / 3, the particle size is 0.1~0.8, the feed concentration is ≥60%

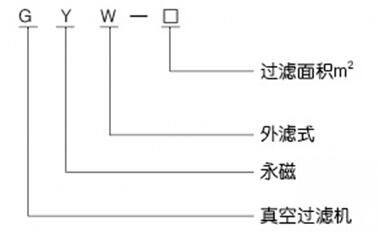

  Model Description:



  Technical Parameters:

Model

GYW-3GYW-5GYW-8GYW-12GYW-20

Diameter of cylinder

(m3)
3581220

The length of the cylinder

(mm)
16002000200020002550

The length of the cylinder

(mm)
70090014002002650

Surface magnetic induction strength

(mT)
8080828787

Filter cake moisture content

(%)
8-118-115-155-155-15

0.15-0.80

Throughput

(t / h)

Feed strength for: 0,15-0,80

6-914-1822-4533-6554-108

Motor power(kW)

1.51.51.52.24

Total weight(t)

3.5653.9354.7545.426.55

Cylinder speed (r / min)

0.5-20.5-20.5-20.5-20.5-2

Vacuum pump (mm / hg)

450-600450-600450-600450-600450-600

Pumping capacity(m3/m×m2)

1~21~21~21~21~2

Blast pressure (continuous blow) (kg/cm2)

0.1-0.30.1-0.30.1-0.30.1-0.30.1-0.3

Blast volume (continuous blast)(m3×m2

0.2-0.40.2-0.40.2-0.40.2-0.40.2-0.4

Filter area angle (degree)

176176176176176

Unloading area angle (degree)

2121212121

Regeneration zone angle (degree)

100100100100100
