Principle overview：

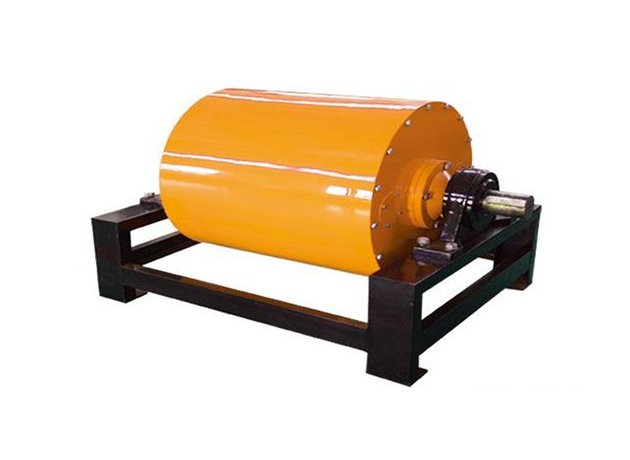

RCT series permanent magnetic cylinder also known as magnetic pulley, it has the advantage of high magnetic field strength, large depth, simple structure, no power consumption, the long usage without demagnetization.It work with DT-75 type, ad-80 settled belt conveyor to instead of action wheel or driven wheel which benefit the cement, magnetic separation, especially for steel slag, slag, slurry slag's the continuous automatic iron removal.
Technical Parameters：
Parameter Project Model | Surface magnetic induction strength ≈Gs | Belt spee d ≤m/s | Material thickness ≤mm | Width adaptable (mm) | Overall dimension(mm) | ||||||||
| A | B | Dφ | L | L1 | K | d | h | b | |||||
| RCT-32/40 | 1500 | 2.5 | 60 | 400 | 728 | 400 | 320 | 500 | 930 | 100 | 50 | 48.5 | 12 |
| RCT-32/50 | 1500 | 60 | 500 | 850 | 500 | 320 | 600 | 1030 | 100 | 50 | 53.5 | 12 | |
| RCT-32/65 | 1500 | 60 | 650 | 910 | 650 | 320 | 750 | 1230 | 115 | 50 | 53.5 | 12 | |
| RCT-40/50 | 1550 | 80 | 500 | 850 | 500 | 400 | 600 | 1030 | 100 | 50 | 60 | 14 | |
| RCT-40/65 | 1550 | 80 | 650 | 1000 | 650 | 400 | 750 | 1230 | 115 | 50 | 60 | 14 | |
| RCT-50/50 | 1600 | 100 | 500 | 850 | 500 | 500 | 600 | 1030 | 115 | 55 | 60 | 14 | |
| RCT-50/65 | 1600 | 130 | 650 | 1000 | 650 | 500 | 750 | 1230 | 115 | 55 | 60 | 14 | |
| RCT-50/80 | 1600 | 130 | 800 | 1300 | 800 | 500 | 950 | 1500 | 135 | 55 | 60 | 14 | |
| RCT-63/65 | 1650 | 150 | 650 | 1000 | 650 | 630 | 750 | 1250 | 135 | 70 | 76 | 16 | |
| RCT-63/80 | 1800 | 150 | 800 | 1300 | 800 | 630 | 950 | 1600 | 150 | 70 | 76 | 16 | |
| RCT-63/100 | 1800 | 150 | 1000 | 1500 | 1000 | 630 | 1150 | 1861 | 175 | 70 | 76 | 16 | |
| RCT-80/100 | 1800 | 180 | 1000 | 1500 | 1000 | 800 | 1150 | 1954 | 215 | 70 | 76 | 20 | |
| RCT-100/120 | 1800 | 200 | 1200 | 1750 | 1200 | 1000 | 1400 | 2170 | 235 | 90 | 97 | 20 | |
