Principle overview:

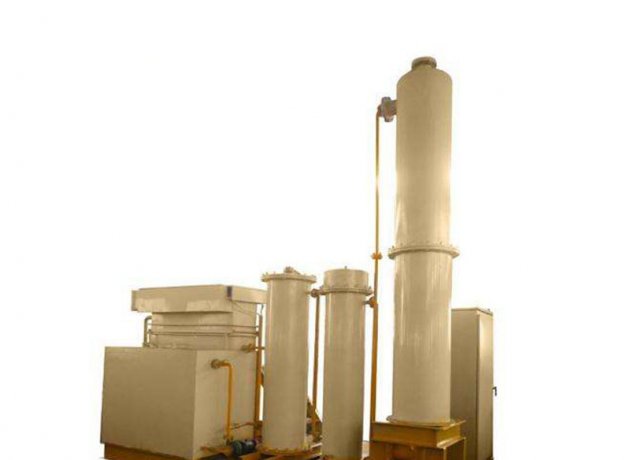

complete desorption electrolysis equipment is the key equipment of gold cyanidation CIP process, it constructed by electric heater, desorption column, heat exchanger, electrolytic tank, pump and other parts. It featuring on compacted structure, convenient installation, desorption rate up to 96%, electrolytic rate greater than 99%.
Selection instructions:
Design non-standard equipment according to user's requirement.
Model Description:
300kg refers one time loading amount of gold carbon.
Technical Parameters:
Desorption rate (%) | Electrolytic rate (%) | Installed capacity (kW) | Desorption temperature (℃) | Electrolysis voltage (v) | Electrolytic current (A) | Throughput (kg / lote) | Electrolyte flow (t / h) | Weight (kg) | Specifications (mm) (LxWxH) |
>96 | >99 | 30 | 95 | 1.5-3 ( CC ) | 200 | 300 | 1.5 | 2430( Does not contain electrical appliances ) | 4120 x 2100 x 4130 |
>96 | >99 | 60 | 95 | 1.5-3 ( CC ) | 200 | 500 | 3 | 4860 | 4120 x 2100 x 4130 |
