Principle overview：

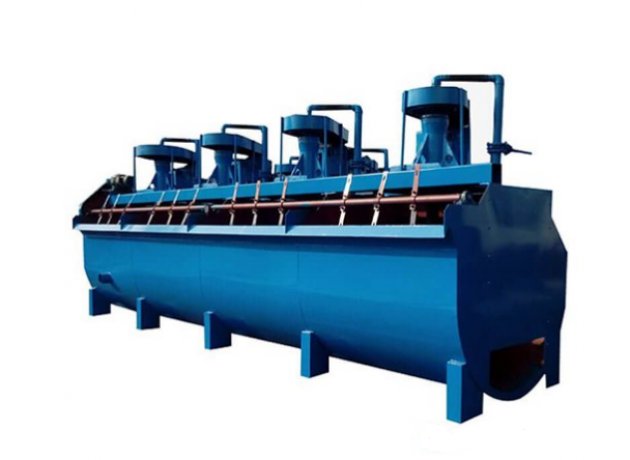

XCF type and KYF type are Inflatable flotation cell, XCF type has the ability of absorb ore pulp as a suction tank , KYF type no self suction capability as direct-current tank, can realize the horizontal arrangement of the tank, without foam pump. "U" shaped tank reduces the deposit at the bottom of the tank , takes large diameter conical impeller and short blade rotor. Large processing capacity, low power consumption.The middle of the impeller is provided with inflatable disperser, air filled evenly and fully mixed.
Selection instructions：
1.In addition to indicating the model and quantity, you must to provide the process of flotation , provide the following :
①Configuration scheme and feeding method ② he number of scraper plate driving system and driving mode(right driving, left driving)
2. The factory is not equipped with motor starting device.
Technical Parameters：
Model | Effective Volume (m 3) | Process Capability (m 3 / min) | Diameter of impeller(mm) | Speed of impeller (r / min) | Wind of Pressure Blower (kpa) | Maximum inflation Volume (m 3 / m 2 .min) | Power of Agitator Motor (kw) | Power of Scraper Motor (kW) | Weight of Single Tank (kg) |
| XCF-1 | 0.2-1 | 400 | 358 | >12.6 | 2 | 5.5 | 1.1 | 1154 | |
| XCF-2 | 2 | 0.4-2 | 470 | 331 | >14.7 | 2 | 7.5 | 1.1 | 1659 |
| XCF-3 | 3 | 0.6-3 | 540 | 266 | >19.8 | 2 | 11 | 1.5 | 2259 |
| XCF-4 | 4 | 1.2-4 | 620 | 215 | >19.8 | 2 | 15 | 1.5 | 2669 |
| XCF-8 | 8 | 3.0-8 | 720 | 185 | >21.6 | 2 | 22 | 1.5 | 4435 |
| XCF-16 | 16 | 4-16 | 860 | 160 | >25.5 | 2 | 37 | 1.5 | 6568 |
| XCF-24 | 24 | 4-24 | 950 | 153 | >30.4 | 2 | 37 | 1.5 | 8000 |
| XCF-38 | 38 | 10-38 | 1050 | 148 | >34.3 | 2 | 45 | 1.5 | 11000 |
| XCF-40 | 40 | 10-40 | 1100 | 144 | 2 | 75 | 1.5 | 12101 | |
| XCF-50 | 50 | 10-50 | 1210 | 136 | 2 | 90 | 1.5 | 17586 | |
| KYF-1 | 0.2-1 | 340 | 281 | >12.6 | 2 | 4 | 1.1 | 826 | |
| KYF-2 | 2 | 0.4-2 | 410 | 247 | >14.7 | 2 | 5.5 | 1.1 | 1419 |
| KYF-3 | 3 | 0.6-3 | 480 | 219 | >19.8 | 2 | 7.5 | 1.5 | 1885 |
| KYF-4 | 4 | 1.2-4 | 550 | 200 | >19.8 | 2 | 11 | 1.5 | 2206 |
| KYF-8 | 8 | 3.0-8 | 630 | 175 | >21.6 | 2 | 15 | 1.5 | 4190 |
| KYF-16 | 16 | 4.0-16 | 740 | 160 | >25.5 | 2 | 30 | 1.5 | 6019 |
| KYF-24 | 24 | 4.0-24 | 800 | 150 | >30.4 | 2 | 30 | 1.5 | 7500 |
| KYF-38 | 38 | 10-38 | 880 | 138 | >34.3 | 2 | 37 | 1.5 | 10300 |
| KYF-40 | 40 | 10-40 | 950 | 144 | 2 | 55 | 1.5 | 10653 | |
| KYF-50 | 50 | 10-50 | 1050 | 133 | 2 | 75 | 1.5 | 15660 |
