Principle overview：

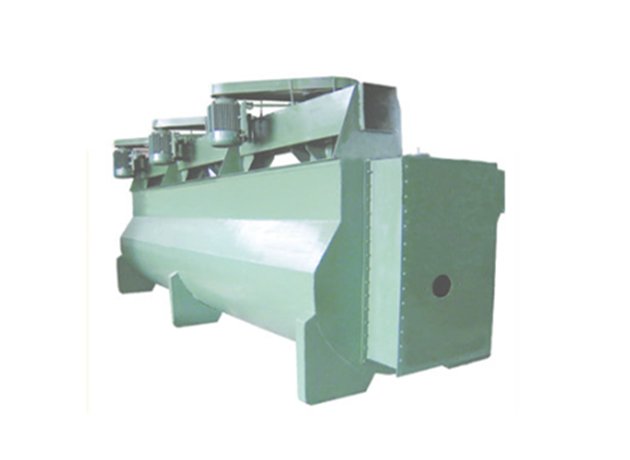

BS - K type flotation machine main shaft hanging on the side of the frame, bearing body structure lightweight, easy installation, good vertical , the impeller section is conical and the stator is radial, Low wear, long life, strong stirring. "U" shaped tank reduces the deposit at the bottom of the tank, the main shaft parts are light, The stator is mounted on the bottom of the tank, easy to install. Small power and saving energy; Filled with compressed air, the bubble dispersed evenly, foam stability, particle suspension is good, the recovery rate is above 2%.
The product is divided into single tank, double slot, three tank, the four tank, the five tank, the six tank and other units.
There is no ability to self suction air and slurry , the flow need to ladder arrangement, foam return need to rely on foam pump.
Selection instructions：
1.In addition to indicating the model and quantity, you must to provide the process of flotation , provide the following :
①Configuration scheme and feeding method ② he number of scraper plate driving system and driving mode(right driving, left driving)
2. The factory is not equipped with motor starting device.
Technical Parameters：
| Model | Tank Volume (m3) | rotor speed (r/min) | Wind Pressure(MPa) | Process Capability(m 3 /min) | Motor Power | Internal dimensions(mm) | Weight Single Tank (kg) |
| BS-K2.8 | 2.8 | 248 | 0.4-3 | Y160IV8/5.5 | 1550 x 1550 x 1350 | 1740 | |
| BS-K4 | 4 | 210 | 0.5-4 | Y160L-8/7.5 | 1850 x 1850 x 1550 | 2568 | |
| BS-K8 | 8 | 180 | 1.0-8.0 | Y180L-6/15 | 2350 x 2350 x 1950 | 4539 | |
| BS-K16 | 16 | 160 | 2.0-15.0 | Y250Mh8/30 | 2800 x 2800 x 2400 | 8131 | |
| BS-K24 | 24 | 154 | 7月20日 | Y280S-8/37 | 3200 x 3200 x 2800 | 11107 |
