Principle overview：

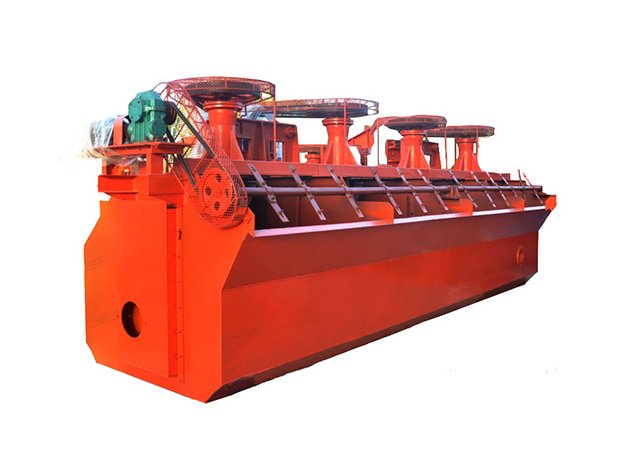

The product is the strong agitation flotation machine based on the SF type, be used for mineral separation of larger specific gravity, the feature is based on SF type adding bubble baffle plate, using centrifugal impeller, thus its stirring force is strong.
Selection instructions：
1,1In addition to indicating the model and quantity, you must to provide the process of flotation , provide the following :
①feeding ore method: ②The number of scraper plate driving system and driving mode(right driving, left driving) ③ other special requirements.
2, The factory is not equipped with motor starting device.
3,Gate can be changed according to user needs.
4, Fluorite beneficiation with fluorite dedicated water tank.
Technical Parameters：
| Model | Effective Volume(m 3) | L x W x H(mm） | Diameter of impeller(mm) | Circular velocity of impeller(m/s) | Air suction amount m3/m2.min | Motor model | Power(kW) | Process Capability (m 3/ min) | Weight Single Tank (kg) |
| BF-0.25 | 0.25 | 650 x 600 x 700 | 250 | 6 | 0.9-1.05 | Y100L-6 | 1.5 | 0.12-0.28 | 370 |
| BF-0.37 | 0.37 | 740 x 740 x 750 | 286 | 7.2 | 0.9-1.05 | Y90L-4 | 1.5 | 0.2-0.4 | 470 |
| BF-0.65 | 0.65 | 850 x 950 x 900 | 300 | 7.35 | 0.9-1.10 | Y132S-6 | 3 | 0.3-0.7 | 932 |
| BF-1.2 | 1.2 | 1050 x 1150 x 1100 | 450 | 7.02 | 0.9-1.10 | Y132IV6 | 5.5 | 0.6-1.2 | 1370 |
| BF-2.0 | 2 | 1400 x 1450 x 1120 | 500 | 7.5 | 0.9-1.10 | Y160M-6 | 7.5 | 1.0-2.0 | 1750 |
| BF-2.8 | 2.8 | 1650 x 1650 x 1150 | 550 | 8.06 | 0.9-1.10 | Y180L-8 | 11 | 1.4-3.0 | 2130 |
| BF-4.0 | 4 | 1900 x 2000 x 1200 | 650 | 8 | 0.9-1.10 | Y200L-8 | 15 | 2.4-4.0 | 2585 |
| BF-6.0 | 6 | 2200 x 2350 x 1300 | 700 | 7.5 | 0.9-1.10 | Y225S-8 | 18.5 | 3.0-6.0 | 3300 |
| BF-8.0 | 8 | 2250 x 2850 x 1400 | 760 | 7.5 | 0.9-1.10 | Y225M-8 | 22 | 4.0-8.0 | 4130 |
| BF-10 | 10 | 2250 x 2850 x 1700 | 760 | 7.52 | 0.9-1.10 | Y225M-8 | 22 | 5.0-10 | 4500 |
| BF-16 | 16 | 2850 x 3800 x 1700 | 850 | 8.7 | 0.9-1.10 | Y280S-8 | 37 | 8.0-16 | 8320 |
| BF-20 | 20 | 2850 x 3800 x 2000 | 850 | 8.7 | 0.9-1.10 | Y280Mh8 | 45 | 10.0-20 | 8670 |
| BF-24 | 24 | 3150 x 4150 x 2000 | 920 | 8.7 | 0.9-1.10 | Y280Mh8 | 45 | 12.0-24 | 8970 |
