Principle overview：

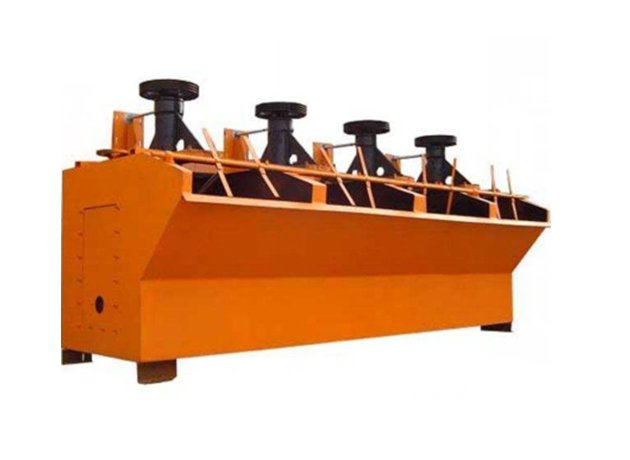

This product is the earliest flotation machine imported from the Soviet Union, medium-sized mine return easy to achieve self-leveling, without accessory equipment, neat configuration, simple operation and maintenance, It has the disadvantages of small aeration volume and high power consumption, the impeller and the cover plate are made of rubber parts.
Selection instructions：
1, In addition to specify the model, quantity, must provide flotation process, provide the following:①Number of driving system ②concentrate flow direction
2, The factory is not equipped with motor starting device.
3, Fluorite beneficiation with fluorite dedicated water tank
Technical Parameters：
| Model | Tank Volume(m 3 ) | Diameter of impeller(mm) | Production capacity (m 3 / min) | Speed of impeller (r / min) | Drive Motor | Scraper motor | Internal size(mm) (L×W×H) | Weight (Single Tank) (kg) | ||
| Model | Power(kw) | Model | power (kw) | |||||||
| XJK-0.13 | 0.13 | 200 | 0.05-0.16 | 593 | Y90L-4 | 1.5 | Y80IM-4 | 0.75 | 504x 520 x 700 | 266 |
| XJK-0.23 | 0.23 | 250 | 0.12-0.28 | 504 | Y100L2-4 | 3 | Y80M2-4 | 0.75 | 604x 620 x 820 | 389 |
| XJK-0.35 | 0.35 | 300 | 0.15-0.5 | 500 | Y90L-4 | 1.5 | Y80M2-4 | 0.75 | 700 x 700 x 906 | 430 |
| XJK-0.62 | 0.62 | 350 | 0.3-0.9 | 400 | Y132S-6 | 3 | Y90L-6 | 1.1 | 820 x 900 x 1156 | 630 |
| XJK-1.1 | 1.1 | 500 | 0.6-1.6 | 330 | Y132M2-6 | 5.5 | Y90L-6 | 1.1 | 1100 x 1100 x 1269 | 1300 |
| XJK-2.8 | 2.8 | 600 | 1.5-3.5 | 280 | Y160L-6 | 11 | Y100L-6 | 1.5 | 1750 x 1600 x 1450 | 2325 |
