Principle overview：

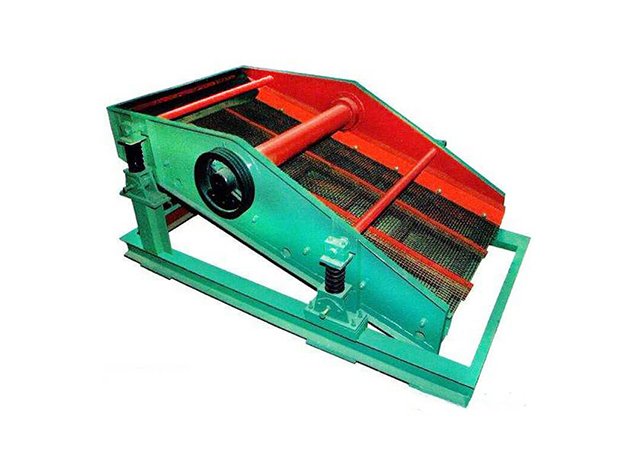

SZZ self center vibrating screen whose movement path is round, classifying small and medium granularity materials, being a traditional and most used screening equipment in China.
Selection instructions：
1. When ordering, in addition to indicating the model and quantity, also noting screen holes size, screen mesh form. (Woven screen mesh or Punched sieve plate)
2. The motor can be installed on the left or the right side, please indicate if there are installation requirements, otherwise, according to the supplier drawings supply.
3. If the user has special requirements, our factory can do non-standard product design and manufacturing.
4. This Series of vibrating screens are pendant type except the Model SZZ1836. Can be processed according to user requirements into seat type, need to specify.

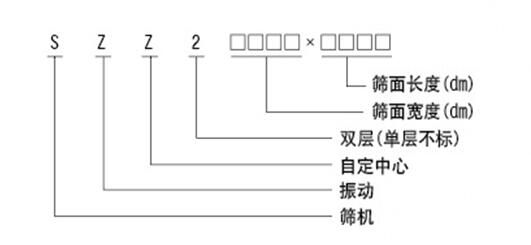

Model Description：
Technical Parameters：
| Model | Specifications(mm) | Maximum feeding size(mm) | Processing capacity(t/h) | Model of motor | Power of motor(kw) | Weight (kg) |
| SZZ0918 | 900 x 1800 | 40 | 20-25 | Y100Lr4 | 2.2 | 420 |
| SZZ20918 | 900 x 1800 | 40 | 40-50 | Y100Lr4 | 2.2 | 570 |
| SZZ1225 | 1250 x 2500 | 100 | 70-100 | Y132S-4 | 5.5 | 1020 |
| SZZ21225 | 1250 x 2500 | 100 | 70-100 | Y132S-4 | 5.5 | 1320 |
| SZZ1530 | 1500 x 3000 | 100 | 90-200 | Y132M-4 | 7.5 | 1650 |
| SZZ21530 | 1500 x 3000 | 100 | 90-200 | Y132M-4 | 7.5 | 2870 |
| SZZ21540 | 1500 x 4000 | 100 | 90-200 | Y160L-4 | 15 | 4240 |
| SZZ1836 | 1800 x 3600 | 150 | 100-300 | Y180M-4 | 18.5 | 4500 |
| SZZ21836 | 1800 x 3600 | 150 | 100-300 | Y180M-4 | 18.5 | 5616 |
