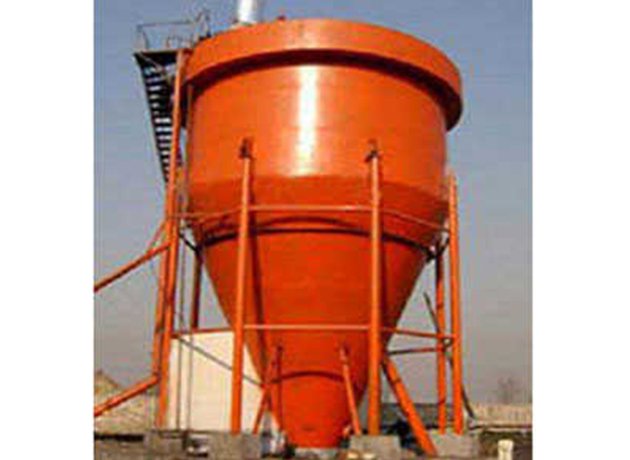

Efficient deep cone thickener

Time:2021-04-26 15:42 Reading volume:


  Principle overview:

Efficient deep cone thickener is currently a separation process for new products in the process of solid-liquid. Due to low investment, small occupied area, high efficiency, and the underflow concentration of the overflow water quality has greatly improved. Not only that can really achieve intelligent operation. Generally,its processing capacity is 3-8 times higher than the traditional concentrated confidential.The underflow concentration is 300-800g/L, the quality of the overflow water can reach the national emission standard.

Mainly consists of a circular thickener and thickener rake scraper is composed of two parts, the settlement of solid particles suspended in a slurry concentrated pool under the action of gravity, the upper is clear water, the solid-liquid separation. In the bottom of the concentrated pool of slime deposited by rake scraper for scraping set to the bottom center of the discharge port of discharge, and the clean water is concentrated along the overflow pool.


  Selection instructions:

It is mainly used for concentrating high concentration mineral in the mineral processing plant, and can also be used for the concentration and waste water treatment of other particles with fine and small density.


  Model Description:

1. The pool height is larger than the pool diameter, the whole was vertical barrel cone;

2. Because of the pool slender body, in the process of adding flocculant, accelerate the process of settling and concentrated overflow water clarification;

3. The utility model has the advantages of small occupation area, large processing capacity, high automation degree and electricity saving.


  Technical Parameters:

model

diameter of thickener(mm)

depth of thickener

(mm)

are of sediment

(m2)

capacity

(m3/h)

GSNG-3300044002160~70
GSNG-66000880085210~260
GSNG-9900013500310570~700
GSNG-121200017500510800~1200
GSNG-15150001900012001000~1500
GSNG-18180002200020001400~2100
GSNG-20200002280027002100~2600
