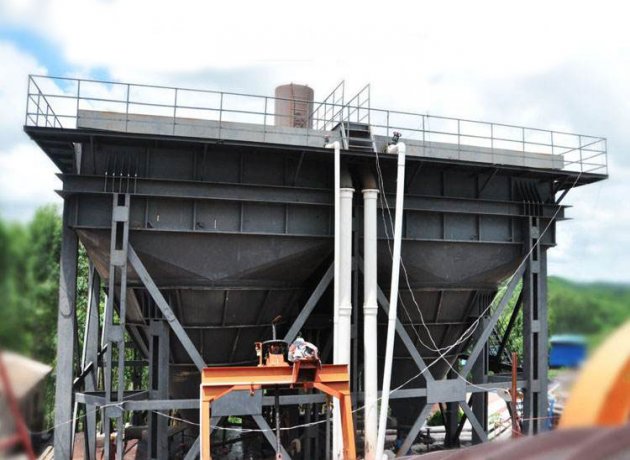

Vibrating hang plate efficient thickener

Time:2021-04-26 15:36 Reading volume:


  Principle overview:

1. Integrated mode of inclined plate condensed channel.

Each settling channel has the same feeding, gradation concentration, sand discharging and overflow functions, and the same structure size, ensuring the stability and identity of each graded concentration channel operation;

2. Module of inclined plate.

The same inclined plate group module is combined and integrated to form the total settlement area of the equipment needed, and the large-scale equipment can be realized simply;

3. The concentration process are completed in a separate channel inclined plate, fine overflow or water lateral discharge from the overflow surface of each channel, shorten the overflow discharge path, effectively solve the overflow discharge process and fine short circulation problem, ensure the equipment to obtain higher efficiency of classification, classification efficiency can reach more than 70% return.

4. Inclined plate module intermittent high frequency vibration, regular automatic cleaning of the inclined plate module, the inclined plate material on the inclined plate to ensure the orderly decline, no accumulation of material, non blocking plate, so as to ensure the long-term stability of the working efficiency of equipment;

5. A special material cleaning device is arranged in the concentration cone bucket to avoid the accumulation of the material in the dense cone bucket. According to the needs of users to achieve high concentration underflow forced discharge, the underflow concentration is more than 70%, to meet the concentrate and tailing discharge dry dry stack requirements;

6. The equipment can be used to concentrate and return, but also can be used for classification and desliming, adding flocculant for the pulp pretreatment, can also be used as a high efficiency thickener.

7. The team occupies a very small area, low power consumption, and low cost for use and maintenance.


  Model Description:

Ore concentration: 1%-20%;

The feed size: less than 2.0mm;

The ore flow: sedimentation velocity depends on the material, usually concentrate 0.5-1.5m 3 /h - M 2, tailings0.3-0.8m 3 /h•m 2;

The underflow concentration is more than 10%-75%;

The rate of returnis more than75%.


  Technical Parameters:

model

area of sediment(m2)

Number of conical Hopper

length(mm)

Width

(mm)

Height

(mm)

ZQN16161369011004360
ZQN31311376024604360
ZQN50501369033005260
ZQN63631556024605630
ZQN1001001556035605500
ZQN1251251551044005660
ZQN1501501771037607890
ZQN2002001771048808160
ZQN2502501771060008500
ZQN3003001800070207890
ZQN4004001771092607890
ZQN50050017710115008500
ZQN60060011488070207890
ZQN80080011488092608160
ZQN100010001、2、414880114608500
ZQN200020004、814880229208500
