Principle overview：

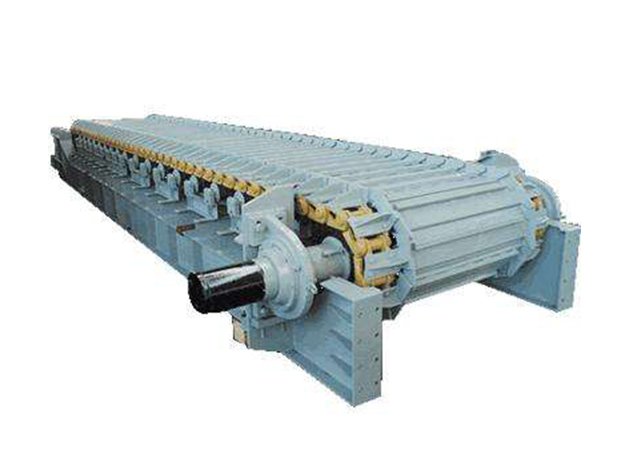

Feeding machine main work is to put the motor power through reducer, it makes the eccentric connecting rod to do reciprocating motion, and makes the pawl driven ratchet drive sprocket rotates, thereby intermittent chain plate can move, so as to achieve the purpose of conveying
Selection instructions：
It is suitable for the bulk material with short distance feeding granularity below 160mm. In the mining, plant, chemical, cement, building materials and other industries, widely used from the storage silo to crushing, transportation and other machinery for continuous feeding, can be installed horizontally, can also be tilted to install, the maximum upward tilt of 20 degrees. Generally applicable to transport loose density is less than 1200kg/m3, block weight is less than 140kg, temperature 35 degrees below the material.
Model Description：
The machine is widely used in the crushing and grading workshop and cement, building materials and other industries , which can be used as a continuous and uniform feeding material to the primary crusher.
Technical Parameters：
model | scraping belt | feed size （mm） | Production capacity （m3/h） | motor | overall dimension (length*width*height) | weight （kg） | |||
width （mm） | Sprocket center distance （mm） | velocity （m/s） | model | power （kW） | |||||
| GBQ50-6 | 500 | 6000 | 0.16 | 160 | 60 | Y160M-6 | 7.5 | 7476×2745×980 | 3894 |
| GBQ50-9.5 | 500 | 9500 | 10976×2720×980 | 5048 | |||||
| GBQ50-12 | 500 | 12000 | 0.1 | 41 | 14276×2790×980 | 6103 | |||
| GBQ50-14 | 500 | 14000 | 0.16 | 60 | Y160L-6 | 11 | 15476×2826×980 | 7315 | |
| GBQ80-6 | 800 | 6000 | 107 | Y160M-6 | 7.5 | 7476×3045×980 | 4274 | ||
| GBQ80-10 | 800 | 10000 | 11476×3045×980 | 5832 | |||||
| GBQ80-12 | 800 | 12000 | Y160L-11 | 11 | 13476×3126×980 | 6556 | |||
