Selection instructions：

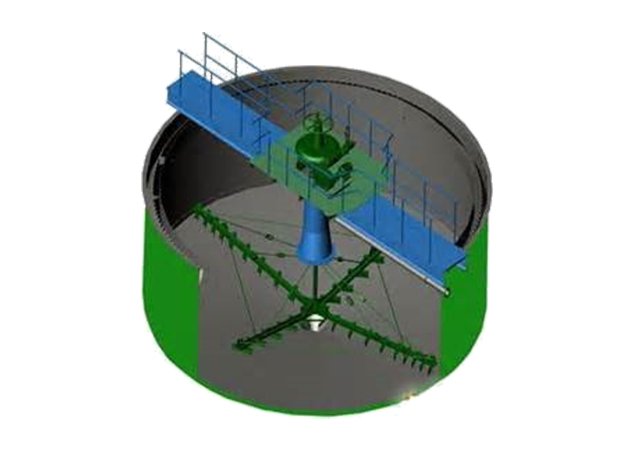

Mainly used for clarification and concentration of coal slurry or ore mines, in order to achieve the purpose of dewatering.
This machine can be used in chemical industry, metallurgy and other industries for solid-liquid separation.
Model Description：
1. High capacity and high concentration efficiency.
2. The hydraulic drive, with overload protection function.
3. By core PLC automatic pressure sensor signal to achieve automatic rake lifting.
4. can be equipped with automatic dosing system.
5. The transmission device has the advantages of simple structure, convenient maintenance.
Technical Parameters：
model | diameter of pond（m） | depth of pond（m） | area of sediment（m3 | rake frame speed （r/min | rake lifting height（mm） | capacity（t/d） | power |
| NZY-6 | 6 | 3～3.2 | 28 | 2.5～5 | 350 | 50～100 | 3 |
| NZY-9 | 9 | 3.5～3.8 | 63.6 | 3～5 | 350 | 120～175 | 3 |
| NZY-12 | 12 | 3.5～3.8 | 113 | 4～7 | 350 | 200～300 | 4 |
| NZY-15 | 15 | 4～4.5 | 176 | 5～10 | 450 | 350～400 | 5.5 |
| NZY-18 | 18 | 4～4.5 | 254 | 8～12 | 450 | 600～800 | 5.5 |
| NZY-20 | 20 | 4～4.5 | 314 | 8～12 | 450 | 800～1000 | 7.5 |
| NZY-24 | 24 | 4.5～5.5 | 450 | 9～12 | 450 | 1000～1300 | 7.5 |
| NZY-30 | 30 | 4.5～5.5 | 706 | 10～14 | 450 | 1500～1800 | 11 |
| NZY-38 | 38 | 6.5～8 | 1134 | 15～22 | 600 | 1800～2200 | 15 |
| NZY-40 | 40 | 6.5～8 | 1256 | 15～22 | 600 | 2200～2400 | 15 |
| NZY-45 | 45 | 6.5～8 | 1590 | 15～22 | 600 | 2400～2800 | 15 |
| NZY-53 | 53 | 6.5～8 | 2206 | 15～22 | 600 | 3000～3500 | 15 |
| NZY-60 | 60 | 7～8.5 | 2827 | 16～50 | 600 | 3500～5000 | 18.5 |
| NZY-75 | 75 | 8～10 | 4418 | 20～80 | 800 | 7500～10000 | 22 |
| NZY-100 | 100 | 8～10 | 7853 | 35～80 | 800 | 10000～15000 | 30 |
