Principle overview：

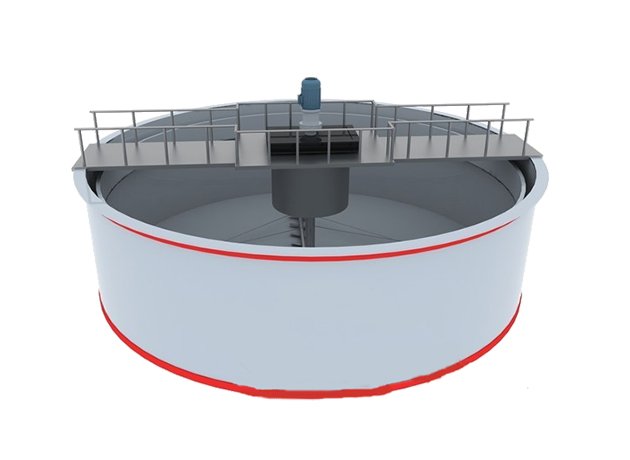

GX high efficient thickener is semi efficient thickener in the case without adding flocculant. compared with ordinary thickener which is characterized by: ①extend the middle barrel length, set a large diameter feed plate at bottom, feed frequency even and smooth. ②increase the cool storage tank to remove air bubbles from slurry. In term of performance, featuring large amount of capacity and high concentration of underflow.
Selection instructions：
1，In the absence of flocculant which better than ordinary thickener.
2，For the flocculant adding device which have to order independently
Technical Parameters：
model | diameter of tank （mm） | height of tank （mm） | area of sediment （m2） | speed （r/min） | rake lifting height （mm） | motor model | motor power（kW） | lifting motor model | lifting motor power（kW） | tank weight（kg） | weight （kg） |
| GX-3.6 | 3600 | 1700 | 10.2 | 1.1 | 200 | Y100L-6 | 1.1 | PZ0.8AB | 0.8 | 2829 | 6650 |
| GX-5.18 | 5182 | 2134 | 21 | 0.8 | 300 | Y132M1-6 | 4 | PZ0.8AB | 0.8 | 5340 | 10460 |
| GX-7.5 | 7500 | 2800 | 44.1 | 0.427 | 300 | Y132M2-6 | 5.5 | Y132S-8 | 2.2 | 10258 | 17320 |
| GX-9 | 9000 | 2800 | 63.6 | 0.427 | 300 | Y132M2-6 | 5.5 | Y132S-8 | 2.2 | 15980 | 23680 |
| GX-12 | 12000 | 3600 | 110 | 0.35 | 300 | Y132M-4 | 7.5 | Y100L1-4 | 2.2 | 25589 | 42756 |
| GX-15 | 15000 | 4000 | 177 | 0.15 | 300 | YCT200-4B | 7.5 | Y112M-6 | 2.2 | 36050 | 59000 |
