Principle overview：

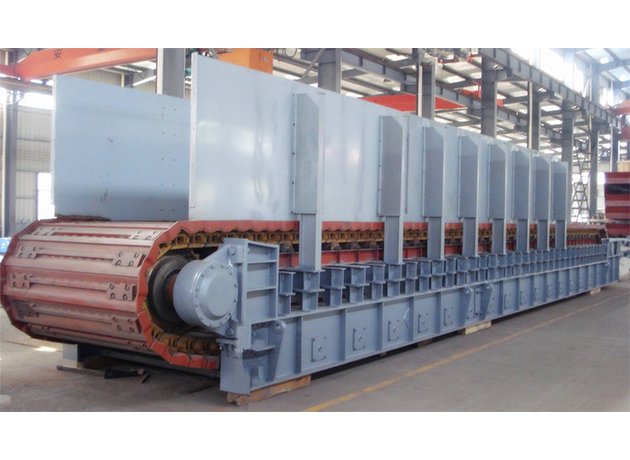

Feeding machine main work is to put the motor power through reducer, it makes the eccentric connecting rod to do reciprocating motion, and makes the pawl driven ratchet drive sprocket rotates, thereby intermittent chain plate can move, so as to achieve the purpose of conveying material
Selection instructions：
The machine is widely used in the crushing and grading workshop and cement, building materials and other industries, which can be used as a continuous and uniform feeding material to the primary crusher.
Model Description：
It can be installed horizontally, can also be tilted to install, the maximum angle of 12 degrees;
In order to prevent the material from hitting the feeder directly,the empty state is not required. Maximum feed size up to 1000mm.
Technical Parameters：
model | scraping belt | feed size （mm） | production capacity （m3/h） | motor | overall dimension (length*width*height) （mm） | weight （kg） | |||
width （mm） | Sprocket center distance （mm） | velocity （m/s） | model | power （kW） | |||||
| GBZ120-4.5 | 1200 | 4500 | 0.05 | ≤500 | 100 | Y160L-4 | 15 | 6983×5228×2080 | 31279 |
| GBZ120-5 | 5000 | 7593×5228×2080 | 33427 | ||||||
| GBZ120-5.6 | 5600 | 8183×5228×2080 | 34321 | ||||||
| GBZ120-6 | 6000 | 8638×5228×2080 | 35900 | ||||||
| GBZ120-8 | 8000 | Y180L-4 | 22 | 10533×5293×2080 | 41342 | ||||
| GBZ120-8.7 | 8700 | 11383×5293×2080 | 43164 | ||||||
| GBZ120-10 | 10000 | 12583×5293×2080 | 46962 | ||||||
| GBZ120-12 | 12000 | 14653×5293×2080 | 51844 | ||||||
| GBZ120-15 | 15000 | Y200L-4 | 30 | 17658×5518×2080 | 62157 | ||||
| GBZ150-4 | 1500 | 4000 | ≤600 | 150 | Y160L-4 | 15 | 6613×5528×2080 | 33197 | |
| GBZ150-6 | 6000 | Y180L-4 | 22 | 8638×5593×2080 | 39257 | ||||
| GBZ150-7 | 7000 | 9633×5593×2080 | 43352 | ||||||
| GBZ150-8 | 8000 | 10533×5593×2080 | 45962 | ||||||
| GBZ150-9 | 9000 | Y200L-4 | 30 | 11683×5668×2080 | 50522 | ||||
| GBZ150-12 | 12000 | Y225M-4 | 45 | 14653×5888×2080 | 59915 | ||||
| GBZ180-6 | 1800 | 6000 | ≤800 | 240 | Y225M-4 | 45 | 8651×6463×2080 | 46840 | |
| GBZ180-8 | 8000 | 10533×6188×2080 | 51360 | ||||||
| GBZ180-9.5 | 9500 | 12033×6188×2080 | 57397 | ||||||
| GBZ180-10 | 10000 | 12593×6188×2080 | 59632 | ||||||
| GBZ180-12 | 12000 | 14653×6363.5×2080 | 66029 | ||||||
| GBZ240-4 | 2400 | 4000 | ≤1000 | 400 | Y200L-4 | 30 | 6613×6718×2080 | 44780 | |
| GBZ240-5 | 5000 | 7533×6718×2080 | 50737 | ||||||
| GBZ240-5.6 | 5600 | 8133×6718×2080 | 52447 | ||||||
| GBZ240-10 | 10000 | Y225M-4 | 45 | 12593×6718×2080 | 76373 | ||||
| GBZ240-12 | 12000 | 14653×6718×2080 | 85331 | ||||||
