Principle overview：
The disc feeder is suitable for the feeding equipment of powder ore below 20mm grain size. Easy installation. By adjusting the position of the scraper to adjust the ore feeding quantity, it can be divided into two types: open type and closed type. Open type is suitable for dry feed materials,while enclosed is suitable for mud and water more viscous ore mine, and it structure is more complex.
Selection instructions：
There are no special requirements, according to the open supply.

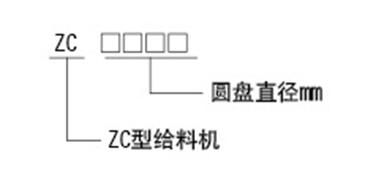

Model Description：
Technical Parameters：
model | Disk diameter (mm) | rotating speed (r/min) | Maximum feed size (mm) | Feeding capacity (t/h) | motor | power (kw) | weight (kg) |
| ZC800 | 800 | 9 | 30 | ≤8.0 | Y100L-6 | 1.5 | 195 |
| ZC1000 | 1000 | 9 | 30 | ≤12 | Y100L-6 | 1.5 | 263 |
| ZC1200 | 1200 | 7 | 40 | ≤18 | Y100L-6 | 1.5 | 500 |
| ZC1500 | 1500 | 7 | 40 | ≤22 | Y132S-6 | 3 | 755 |
