Principle overview：

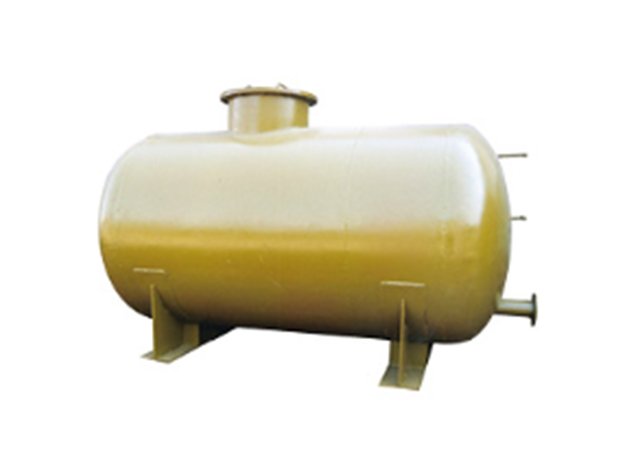

The product is an essential equipment for use with a water jet pump for vacuum extraction,which is a low pressure product, featuring large volume, high strength and good heat dissipation , no pump system with it.
Selection instructions：
Individual order of this product. Pump system must order independently.
Technical Parameters：
model | volume（m3） | max working pressure（Mpa） | weight （kg） |
| φ1200×1600 | 1.5 | 0.58 | 650 |
| φ1200×2400 | 2.4 | 0.58 | 804 |
| φ1400×1600 | 2.3 | 0.58 | 652 |
| φ1400×2500 | 3.1 | 0.58 | 900 |
| φ1600×1600 | 2.6 | 0.58 | 800 |
| φ1600×2400 | 3.7 | 0.58 | 1185 |
