Principle overview：

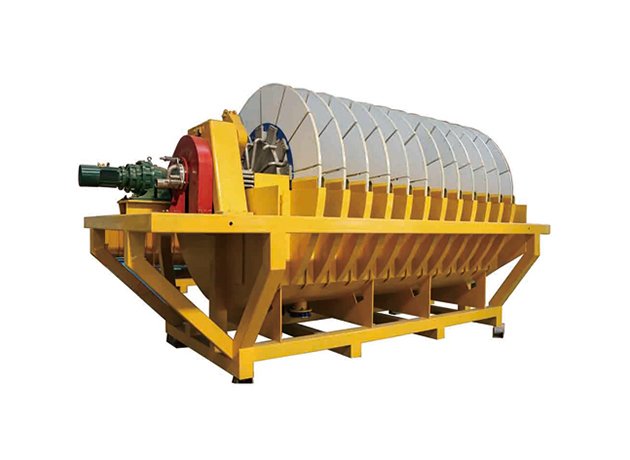

Ceramic filter is mainly composed of roller system, mixing discharge system, vacuum system, liquid discharge system, scraper system, anti flushing system, combined cleaning (with automatic ultrasonic cleaning, acid cleaning) system, automatic control system, tank,and frame. At present，it has been widely used in mining of non-ferrous metals, rare metals, ferrous metals, non metals concentrate and tailing dehydration, chemical industry, electrolytic oxide slag, leaching slag, slag dewatering and waste acid treatment of sewage sludge. Applicable material fineness from -200 to -450 mesh and other various superfine materials.
Selection instructions：
1. vacuum degree( 0.09-0.098MPa), low moisture of filter cake;
2. The add solid content is less than 50ppm. Can be used repeatedly, reducing emissions;
3. The increase compared with traditional ceramic filter cake washing, apply to washing materials;
4. PLC, microcomputer combined with automatic valve control, high degree of automation, reduce labor intensity
5. The compact, small footprint, easy installation and maintenance;
6. The drainage system is advanced, suitable for use in any operating conditions.
Technical Parameters：
model | Filtration area（m2） | Filter plate(circle) | filter plates (block) | volume（m3 | Installed power（kW） | Operating power（kW） | Host (long× width×height)（m） |
| TC-1 | 1 | 1 | 12 | 0.21 | 3.5 | 2 | 1.6×1.4×1.5 |
| TC-4 | 4 | 2 | 24 | 1 | 7 | 3 | 2.4×2.5×2.1 |
| TC-6 | 6 | 2 | 24 | 1.2 | 7 | 6 | 2.4×2.9×2.5 |
| TC-9 | 9 | 3 | 36 | 1.7 | 9 | 7 | 2.7×2.9×2.5 |
| TC-12 | 12 | 4 | 48 | 2.2 | 11 | 7.5 | 3.0×2.9×2.5 |
| TC-15 | 15 | 5 | 60 | 2.7 | 11.5 | 8 | 3.3×3.0×2.5 |
| TC-21 | 21 | 7 | 84 | 4 | 13.5 | 9 | 4.6×3.0×2.6 |
| TC-24 | 24 | 8 | 96 | 4.5 | 16.5 | 10.5 | 4.9×3.0×2.6 |
| TC-27 | 27 | 9 | 108 | 5 | 17 | 11 | 5.2×3.0×2.6 |
| TC-30 | 30 | 10 | 120 | 5.5 | 17.5 | 11.5 | 5.5×3.0×2.6 |
| TC-36 | 36 | 12 | 144 | 7 | 23 | 16 | 6.6×3.0×2.6 |
| TC-45 | 45 | 15 | 180 | 8.5 | 25 | 19 | 7.5×3.0×2.6 |
| TC-60 | 60 | 15 | 180 | 12.5 | 33 | 22 | 7.5×3.3×3.0 |
| TC-80 | 80 | 20 | 240 | 16.2 | 40 | 24 | 9.0×3.3×3.0 |
| TC-102 | 102 | 17 | 204 | 18.5 | 53 | 35 | 8.8×3.6×3.3 |
| TC-120 | 120 | 20 | 240 | 20 | 60 | 40 | 9.7×3.6×3.3 |
| TC-150 | 150 | 25 | 300 | 24 | 75 | 47 | 11.2×3.6×3.3 |
